Base

A range of amplified base station microphones.

Remember - all our prices include a plug, wired to fit your radio, & a battery!!   Some other suppliers charge up to £5 extra for fitting a different plug.

!

Syncron MP-4000
MP4000
!
Syncron MP-4000
larger picture

A base station microphone with adjustable volume control.

  • Mic gain control
  • PTT with lock
  • Powered by a 9V PP3 battery (included)

Zetagi MB+4
M48
!
Zetagi MB+4
Larger picture

A base station microphone with adjustable volume control.

Powered by a 9V PP3 battery.

Zetagi MB+5
M57
!
Zetagi MB+5
Larger picture

A base station microphone with adjustable volume and tone controls.

VU meter indicates audio level.

Powered by a 9V PP3 battery.

Syncron MP6000 RB Echo Base Microphone
M59
!
Syncron MP-6000RB Base Microphone
larger picture

An echo base station microphone with adjustable volume and echo level.

  • Switchable roger bleep
  • Mic gain
  • Echo level
  • PTT lock
  • Powered by a 9V PP3 battery (included)

Watson WM-308
AM1
!
wm308
Larger picture

A compact base station microphone with up/down channel change. Designed for us with Amateur radios, but can be wired to fit some CB's (only models which receive without a mic plugged in)

Output level is adjusted by a preset underneath the base.

Powered by 2 x AA batteries or from transceiver.

ML-308
AM2
!
Spare Lead for WM-308

A replacement plug in lead for the Watson WM-308 microphone.

Supplied without a plug, but for a small extra charge we can fit a plug to suit your radio (so long as we have wiring details or your can supply them).

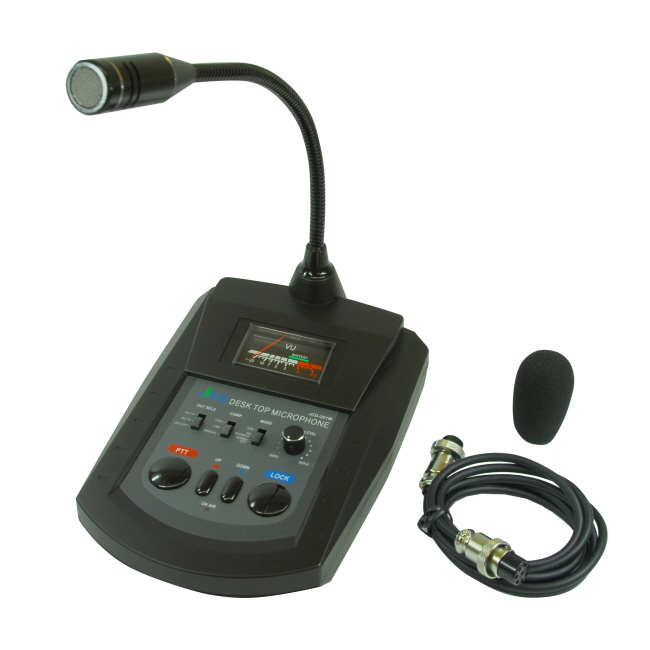

JCD-201M Base Microphone
AM3
!
JCD-201M Base Station Microphone
Website Special - save £20!!

A new high spec base station microphone suitable for both Amateur radios and modern CB radios.

Supplied with 1 lead, wired to suit your radio. Extra leads are available (below).

  • Selectable for 2 sets of transceivers at once by slide switch.
  • High Sensitivity Electret Condenser Microphone Element.
  • High Quality Compressor Amplifier ( High - Low selectable ) built-in. It sends out constant and optimum level without distortion regardless of audio input level.
  • Equipped with FM/SSB Audio Quality Selector Switch for optimum operation. The Electret Condenser Microphone ensures clearer voice quality in FM position and better voice quality on SSB.
  • Non-Modulation Prevention Circuit built-in.
    After continuous transmitting for a few minutes, the alarm circuit will be activated with alarm sound for 30 seconds. Then, the condition returns to receiving mode automatically.
  • Battery-Check Circuit built-in.
    Turn the power switch on ( by selecting ''FM' or ''SSB'' position ), and the level meter indicates the battery condition with power voltage for a few seconds.]

  • Optional Foot Switch
    Optional foot switch can be plugged into the socket on the rear of the microphone for foot operated PTT.

    Amplification:
    High - 45dB
    Low - 35dB
    Manual

    Dual Microphone Connectors Output:

    Output A 8 Pin Standard Microphone Plug
    Output B 8 Pin Standard Microphone Plug
    Front panel switch controlled.

    Meter - Dual Display

    VU (Volume Unit)
    Battery Indicator
    1-1/2" H x 2" W

    Buttons :
    Output Select :  [Out A] [Out B] [Out-Off]
    Compression Level:   [High] [Low] [Manual]
    Manual Compression Control Knob:  [Minimum] [Maximum]
    Mode:  [SSB] [FM] [Battery-Check]
    Channel Control Switch:  [Up] [Down]
    Key Controls:  [PTT] [Lock]

    Output Voltage:
    Amplification - 0.3mv (Lapse)
    Variable Amplification: 0-70mv(Lapse)

    Output Resistance:
    500 Ohm - 100 kOhm

    Batteries Required:
    3 ~ AAA

    • Extra lead for JCD-201M
    AM4
    !

    An additional microphone lead for the JCD-201M base microphone.

    The microphone is supplied with 1 lead, but you can order extra ones to fit other radios.

    Foot Switch for JCD-201
    AM5
    !
    JCD-201 Foot Switch
    larger picture
    Discontinued



    PTT foot switch for use with JCD-201 base microphone.

    Simply plugs into designated socket on the back of the mic.
