Knights Electrocom

Magnetic

Magnetic mounts (mag mounts) are a very popular way of mounting a mobile antenna - because it is so easy.

So long as your vehicle is made of metal (ie not a fibreglass cab or aluminium like a Landrover) all you have to do is stick the mag mount on (preferably in the middle of the roof), screw the antenna in, plug the coax into your radio and away you go!

Mag mounts allow you to adjust the position of your antenna for best performance - this is usually as high and as central as possible.

The main disadvantage of mag mounts is that because they re outside in all weathers, and the coax connection is outside rather than under your roof, they do rust up and get bad connections inside.

You must make sure you choose a mag mount large enough for your antenna - if you do then you will have no problems, but too large an antenna (or too small a mag) and it will come off as you travel down the road.

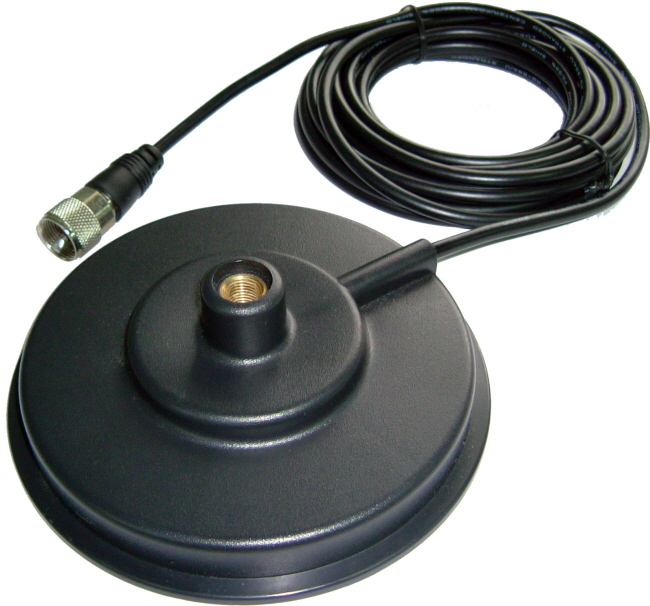

Mini Mag Mount (SMM-2)

SMM2

larger picture

A small 3/8 thread mag mount, approx 3.5" diameter.

The coax is securely moulded into the side of the plastic covered mount. It comes complete with approx 17ft of coax and a fitted PL259 plug.

Suitable only for small antennas, typically up to about 3ft in length (although this depends upon the style of the antenna).

5" Mag Mount

B1035

larger picture

Despite being slightly smaller than the "turbo" mag mounts, this 3/8 thread mount has a full size magnet offering a similar strength to the larger versions. The base measures 135mm diameter.

The casing is completely enclosed in plastic, so preventing unsightly rust patches.

Supplied with approx 17ft of cable and a fitted PL259 plug.

Suitable for base loaded antennas up to 5ft.

Economy Turbo Mag

B12

Larger picture

Discontinued - we now have the delux version for only £1 more!!

A large 3/8 thread mag mount, approx 7" diameter, with a stuck on pad on the base (instead of the rubber boot as used on the better version).

The coax is moulded into the 3/8 mount, which sits on top of the mag base. It comes complete with approx 12ft of coax and a fitted PL259 plug.

Suitable only for most base loaded antenna up to about 1.6m (5ft) in length or smaller centre-load antenna.

Very stong.

Delux Turbo Mag with Boot

B12b

Larger picture

BEST BUY

A large, good quality, 3/8 thread mag mount, approx 7" diameter, with removable rubber boot to help prevent scratching.

The coax is moulded into the 3/8 mount, which sits on top of the mag base. It comes complete with approx 12ft of coax and a fitted PL259 plug.

Suitable only for base loaded antenna up to about 1.6m (5ft) in length or smaller centre-load antenna.

Very stong. Our most popular mag mount.

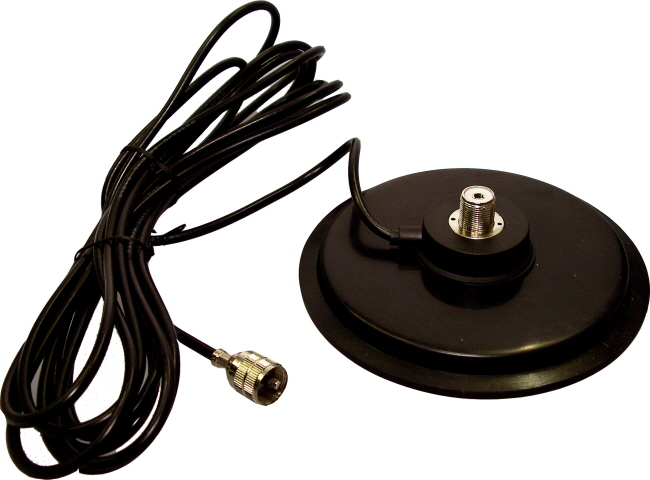

Turbo Mag with SO239 Fitting

B12s

larger picture

A large, good quality, mag mount, approx 7" diameter, with SO239 fitting and stuck on rubber boot to help prevent scratching.

The coax is moulded into the SO239 mount, which sits on top of the mag base. It comes complete with approx 12ft of coax and a fitted PL259 plug.

Suitable for use with most SO239 fitting antennas up to about 5ft in length.

Mag Replacement Lead

B75

Larger picture

A replacement moulded mount with coax lead and PL259 fitted.

This is a replacment lead for the standard mag mounts (B08b and B12b).

Also available as a SO239 fitting.

Chrome 5" Mag Mount

B17

A very strong chrome plated magnetic mount with a heavy duty 3/8 thread fitting and 17ft of good quality coax.

Diameter of base approx 5"

Model LMM-1

Stainless Steel Mag Mount

MSS

larger picture

New 100% stainless steel magnetic mount - eliminate the problem of your mag mount going rusty after being left out in all weathers!

Ideal as a match for the new stainless steel Thunderpole Orbitor antennas.

100% stainless steel body
watertight molded mount
rubber boot
coax with PL259 fitted
approx 160mm diameter

Sirio Mag-125 Mag Mount

Larger picture

A high quality magnetic mount from Sirio.

The mag mount has a plastic casing - preventing rust appearing as seen on cheaper mounts. It also has a removable rubber boot, to help prevent scratching.

Although only about 5" in diameter, this mag is as strong as the 7" turbo mag!

Available with either a 3/8 or SO239 fitting.

Sirio Mag-145 Mag Mount

Larger picture

A very strong high quality magnetic mount from Sirio.

The mag mount has a plastic casing - preventing rust appearing as seen on cheaper mounts. It also has a removable rubber boot, to help prevent scratching.

Approx 6.25" in diameter, this is the strongest mag mount we supply (except for the triple mags).

This is the mount to use with the Sirio Hypower 4000 and MegaWatt 4000 (which are 7ft long!).

Available with either a 3/8 or SO239 fitting.

Triple Mag

larger picture

Triple Mag

A very strong mag mount assembly consisting of three 5" mag mounts fastened together, with a mount fixed centraly between them.

Used on HF whips and 1/4 wave 10/11m whips.

Comes complete with mount and about 12ft of coax with PL259 fitted.

Available with either a 3/8 or SO239 mount.

Make sure you are strong enough to pull it from the car before ordering!

"T" Bar Triple Mag Mount

larger picture

CHROME TRIPLE MAG

A very strong mag mount assembly consisting of three 5" chrome mag mounts fastened together by strong flat bars with a central mount.

Used on HF whips and 1/4 wave 10/11m whips.

Comes complete with mount and about 12ft of coax with PL259 fitted.

Available with either a 3/8 thread or SO239 mount.

Make sure you are strong enough to pull it from the car before ordering!

Please note current stock has chrome mag mounts rather than black as pictured.

K40 Mag Mount

B14

Larger picture

Special magnetic mount for the K40 antenna.

Note that you must already have the trunk (boot) mount complete with cable which comes on the K40, because this simply sits (and is fastened) inside the mag base.

Very strong!
